Oписание продукта


 Features:
Top performance cost ratio
High power density, smallest and compact
Full metal enclosure with very low EMI
The microprocessor(MCU) control
Using Encoder to set the voltage and current
Four digital volt meter and current meter
High efficiency, up to 90%.
Low Ripple & Noise: ≤ 30 mVp-p.
Output ON/OFF
Lock switch
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection

Specification
Operation Voltage Range       170 – 264Vac
Operation Frequency Range     45 – 65HZ
Output Voltage Range          0 – 32V
Output Current Range          0 – 20A
Efficiency (220Vac/full load)      ≥89%
Full Load Input Current(220Vac)    ≤5.1A
No Load Input Current(220Vac)      ≤180mA
Volt Meter Accuracy                ≤ 0.3% + 1 digits
Current Meter Accuracy             ≤ 0.3% + 2 digit

Constant Voltage
Load Regulation (0-100%)           ≤ 30mV
Line Regulation(198-264Vac)        ≤ 10mV
Ripple & Noise (Peak-Peak)         ≤ 30mV
Ripple & Noise (r.m.s)             ≤ 3mV
Set Accuracy                       ≤ 0.3% + 10mV
Transient Response Time (50%-100% rated Load)   ≤ 1.0ms

Constant Current
Load Regulation(90%-10% Rated Voltage)   ≤ 50mA
Line Regulation (198-264Vac)             ≤ 20mA
Ripple & Noise (Peak-Peak)               ≤ 30mAp-p
Set Accuracy                             ≤ 0.3% + 20mA
Size(width× height× depth)             188×80×238mm




Package include:

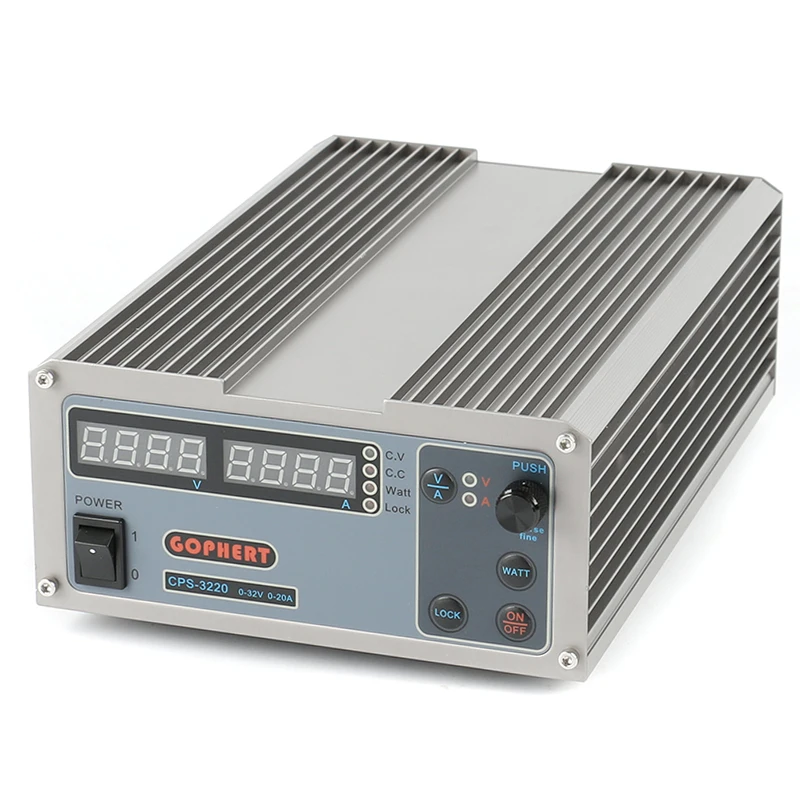

1 x CPS-3220 DC Power Supply(110V or 220v)
1 x EU/AU Power Cable
1 x User Manual
1 x Test line
